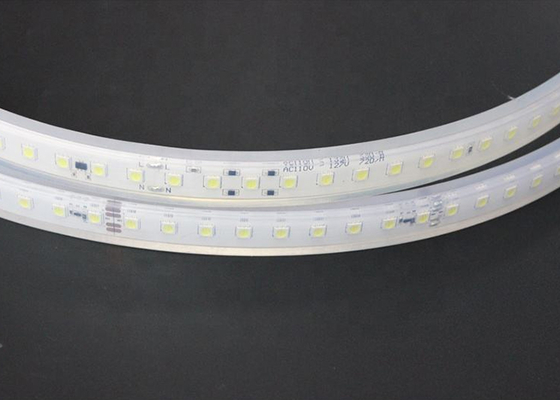

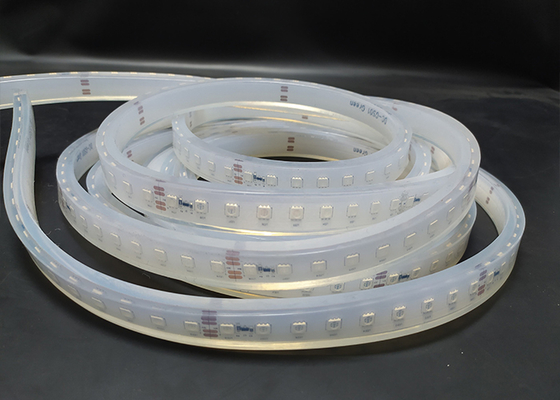

Explosion proof Underground Led Strip Light Flexible Silicone IP68 Waterproof Mining Strip Light

Explosion-proof underground mine led strip light Flexible silicone IP68 led mining lighting solution

First of all, we know that not all LED strip lights are suitable for underground mines or underground tunnels.

Due to the complexity of the underground environment, the special requirements for the performance of LED strip lighting products are determined.
The LED strip lights on the market are roughly divided into bare board light strips, PVC tube light strips, PVC extruded light strips, and silicone integrated extruded light strips.

Functionally, it is divided into decorative light strips, commercial light strips and industrial-level light strips.

The professional use of LED strip lights for underground mines is of very high standards in terms of production materials, production technology and performance requirements.

GLT LED strip lights adopts super-tough silicone soft overmolding process. The outlet end is equipped with an injection-molded waterproof connector and a waterproof power supply, which effectively improves the waterproof performance of the product.

The LED strip lights is outsour Impact resistance, high brightness, long working time.

GLT industrial-grade LED strip lights are professionally used for lighting in harsh environments such as dust, humidity, rain, vibration, compressed environments, and corrosive gases.

Designed to provide permanent lighting solutions for underground mining and tunnel environments, other applications include open-pit mining operations, open-pit mining, commercial and other household and industrial facilities.

The GLT LED strip lighting for underground mining is a safe, durable and sturdy product. It can work 24 hours a day, 7 days a week, and 365 days a year.

It has a long service life of at least 5 years and does not require maintenance. It can be recycled and reused.

What are the characteristics of the GLT LED mining strip lights?

1. Professional structure design, uniform light emission, no spot, soft light, good color temperature consistency.

2. Using food-grade silicone material, it is resistant to yellowing, high and low temperature, and can be used in harsh environments both indoors and outdoors.

3. Corrosion resistance, resistance to weak acid, alkali and salt. Can be used in extremely harsh environments.

4. Good waterproof performance, waterproof grade IP68.

5. Good flexibility, flexural and tensile resistance, easy to shape, and easy to ship.

6. Good flexural and tensile performance.

7. Once formed, the product is solid and reliable.

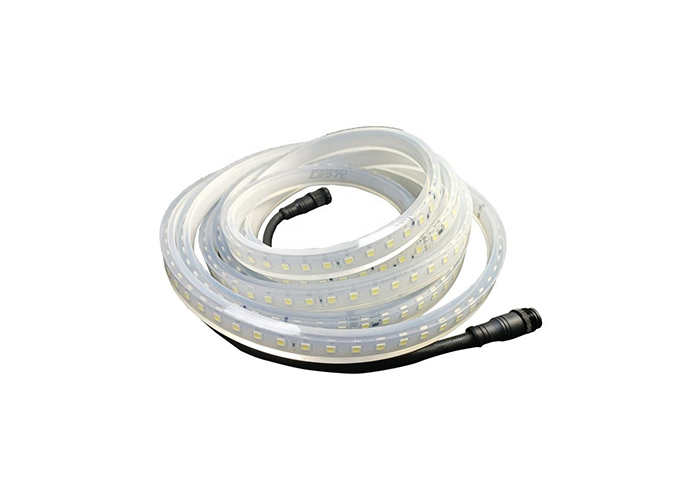

8. Play and plug system conveniently and easy-connection.
9. the connection between light strips is the waterproof IP68 connecter, plug and play system.

    A single power source just connect the end of 10meter light strips, between 10meters light strips just connect use play and plug system.

    A single power supply will light a 20 meter LED section. To extend beyond 20 meters, just add another power source at the other end and connect the next section of LED strip.

* LED STRIP LIGHTS specific for using in mines, hazardous by gas(methane) or coal dust worksite enviornment.

	Model No.	GL-XLM-1020-15W-72-AC220
	Materials	Food grade silicone
	Electric board width	15mm
	Voltage	AC220V
	Power	15W/m
	Color temperature	3000k/6500k/10000k for option
	Quantity of LEDs	72 LEDs per metre
	Lighting range	100 metres
	Luminous flux/M	1100lm
	Light lifespan	>5 years
	Significant index(RA)	>80
	Section size(Width * Thick)	10mm*20mm
	Working temperature	-40~80℃
	Waterproof rating	IP68
	Fire rating	V1
	Tensile strength	500N
	Impact level test	Shatter resistance level IK04
	Warranty	1 year

The quality management and control of GLT LED strip lights?

1. Flame Retardancy Testing
To ensure that the led light strip is fire retardant and self-extinguishing to the EN 60598-1:2008 standard.

2. Water Ingress Protection Testing
Conducted to ensure that no moisture enters the light strip to the IP68 standard.

3. Corrosion Immersion Testing
All accessories are subject to prolonged in house corrosion immersion testing to verify the products durability when exposed to weak Hydrochloric Acid, Alkali and Sea Water Spray.

4. Restriction of Hazardous Substances Light Strip Testing
For Cadmium, Lead, Mercury, Hexavalent, chromium. Polybrominated Diphenyl Ethers (PBDE’s) to verify compliance with to verify compliance with GB, and MA Directive.

5. Flexible Lighting Products Testing
All 24-240 Volt strip lighting/accessories are tested to the Flexible Lighting Products standard.

6. Weight/Tensile Strength Testing
All GLT led strip lighting and its connectors are subject to in house prolonged weight/tensile strength testing to ensure that they have the required strength and are suitable for the harsh conditions they will be subjected to.

7. Impact Testing
All GLT LED strip lighting is subject to in house impact testing to ensure that the product has the required impact strength.

8. Photometric Testing
All GLT LED strip lighting is subject to Photometric Testing in accordance with the Everfine Goniophotometers System Test to verify that the specified amount of luminosity is continuously available from the high-grade LED’s that are used.

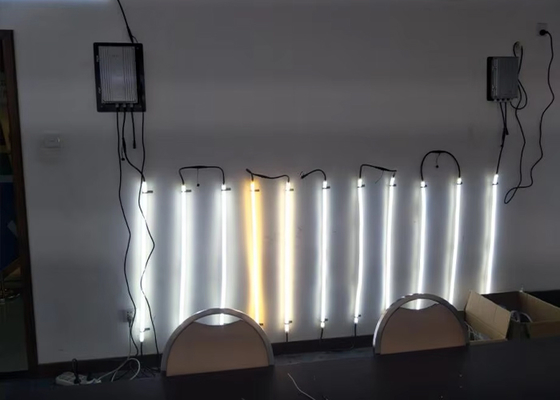

9. Lifecycle Testing
All GLT LED strip lighting is subject to in house Lifecycle Testing whereby it is energised 24 hours a day, 365 days a year to monitor and test for any signs of drop in luminescence, or any other form of deterioration.

10. High and Low Temperature Testing

All strip lighting is available at the temperature -40 to 80 degree, to ensure the different working conditions.
